Shutters365: Transforming the Window Shutter Shopping Experience
About Our Client
Shutters365
- IndustryHome Improvement (Window Shutters & Blinds)
- RegionUnited Kingdom
- PlatformE-commerce website
- Delivery3 months
Shutters365 is a UK-based supplier of custom-sized window shutters. The company offers a product range manufactured from PVC, Paulownia, and Basswood. Each material is selected for durability, weight, and moisture resistance.
Orders are manufactured to customer specifications, ensuring precise fit and consistent product quality. The business follows a direct-to-customer delivery model. This model reduces the number of handling layers and maintains control over pricing, order accuracy, and distribution across the United Kingdom.
Project Overview
Guided Digital Ordering For Bespoke Shutters
Shutters365 approached Digisoft Solution to replace manual inquiry handling with a guided digital ordering system for bespoke shutters. Quote cycles previously took 24–48 hours due to repeated clarification loops.
A WordPress-based WooCommerce system was developed using a custom plugin and a JavaScript configurator, enabling real-time pricing via AJAX. Configuration state is stored in session storage and mapped to WooCommerce order line items at checkout.
The Concept
DIY Configuration From Selection To Checkout
The vision behind Shutters365 is to provide a DIY product configuration experience that replaces reliance on in-store purchasing with a fully digital ordering process. It enables users to independently define product requirements and complete the selection process through guided interactions.
The experience follows a structured user journey. It supports specification selection, measurement input, and purchase completion within a single, streamlined flow, reducing decision friction and improving clarity.
The frontend JavaScript configurator manages user interaction and interim validation; all final validation and pricing logic are enforced server-side before order creation, establishing a clear separation between client-side experience and backend authority.
Key Challenges Addressed
WooCommerce Needed Control Over Configuration, Pricing & Order Data
Native WooCommerce product models could not support high-combination bespoke shutters without duplication, manual coordination, or unreliable pricing at scale.
High-Volume Configuration Handling
Supporting numerous input combinations was constrained by WooCommerce's variable products. WooCommerce relies on predefined attributes and fixed variation sets, limiting scalability due to required duplication.
Conditional Logic and Dependency Mapping
WooCommerce lacks native dependency-based field logic, making conditional visibility and interdependent inputs complex to manage while maintaining valid configurations.
Dynamic Pricing Evaluation
WooCommerce lacks native support for multi-parameter dynamic pricing. This requires accurate cost computation across combined input conditions.
Real-Time Interface Updates
Server-side cart recalculation in WooCommerce limits real-time responsiveness, requiring efficient state synchronization and minimized recalculations on the frontend.
Input Validation and Dimension Control
Native validation is limited to basic constraints. This makes enforcement of dimension-based rules and structured input validation necessary for production accuracy.
Structured Data Handling for Order Processing
WooCommerce provides limited support for complex configuration data beyond cart metadata, making consistent data structuring across cart and order stages challenging.
Technical Solutions We Implemented
Rule-Driven Configurator With Server-Authoritative Pricing
Performance and scalability were optimized using AJAX updates, controlled recalculations, caching layers, and session isolation, enabling linear growth.
Step-Based Configuration Flow
Implemented modular JavaScript multi-step configurator with centralized state management and validation guards. This creates a crawlable product structure for SEO while enabling progressive interaction without relying on WooCommerce product variants.
Rule-Driven Input Handling
Implemented a structured rule-processing module using JSON-based configuration objects to evaluate input dependencies and conditional logic. Rules are applied at runtime to control field visibility, enforce valid combinations, and support pricing-related conditions without static product definitions.
Conditional Pricing Engine
Dynamic pricing is implemented via WooCommerce cart calculation hooks using a custom pricing function. The system evaluates base price, dimension-based multipliers, and material-specific adjustments to compute final pricing during cart calculation.
Real-Time State Synchronization
The configuration state is managed via structured JavaScript objects and persisted using sessionStorage for navigation recovery. Updates trigger on user input to maintain UI-pricing consistency, while client-side states remain non-indexable to prevent duplicate or parameterized URLs from being indexed and preserve SEO integrity.
Input Validation Layer
Validation is enforced at both the front-end and back-end levels. Client-side validation provides immediate feedback on format, range, and required fields. Server-side validation ensures data integrity and prevents malicious input during checkout.
Structured Order Data Capture
Ensures accurate and automated transfer of configuration data into WooCommerce order records, eliminating manual re-entry and reducing fulfillment errors. This facilitates accurate order processing and supports downstream manufacturing workflows.
Digisoft Solution delivered a configurator-driven e-commerce system that standardizes product configuration, pricing, and order processing within a validation-driven flow—replacing manual steps with a unified digital process from selection to fulfillment.
Configurator Architecture
Client Experience With Server-Side Authority
The platform couples a progressive JavaScript configurator with WooCommerce cart hooks and structured order mapping—so shoppers get real-time feedback while pricing and validation remain authoritative on the server.
- Multi-step configurator with centralized state and validation guards
- JSON rule engine for dependencies, visibility, and valid combinations
- Dynamic pricing via WooCommerce cart calculation hooks
- sessionStorage persistence for navigation recovery across steps
- AJAX-driven updates with controlled recalculations and caching
- Configuration data mapped to WooCommerce order line items at checkout
- Non-indexable client state to preserve SEO on crawlable product pages

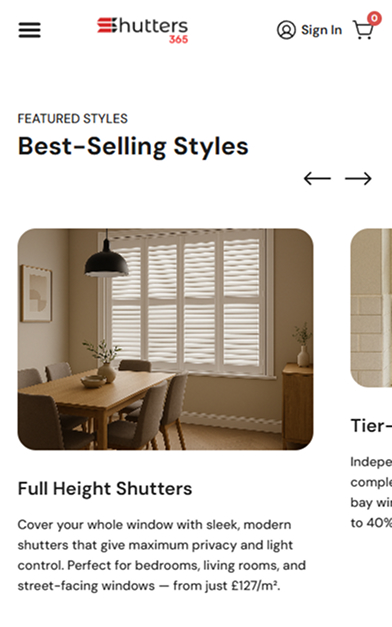

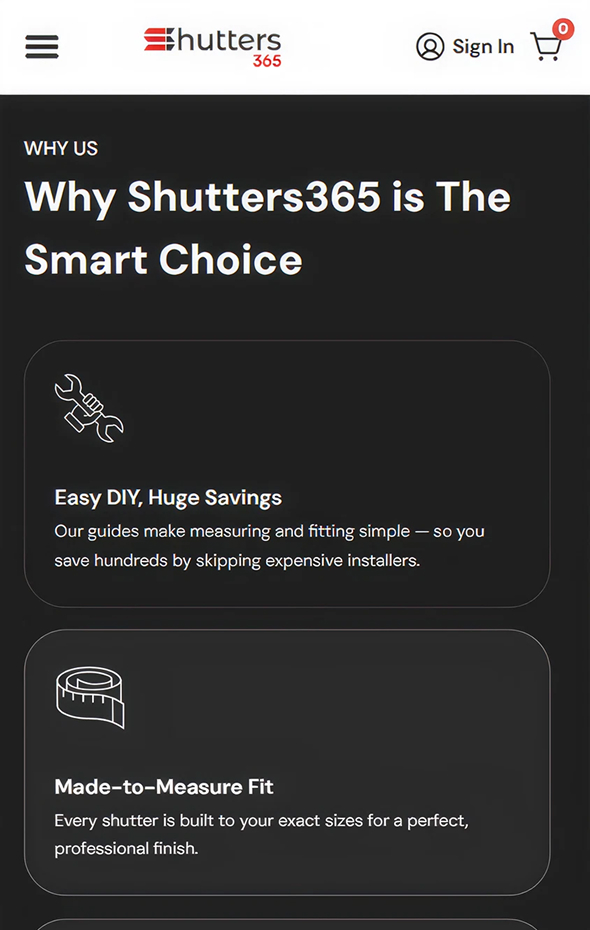

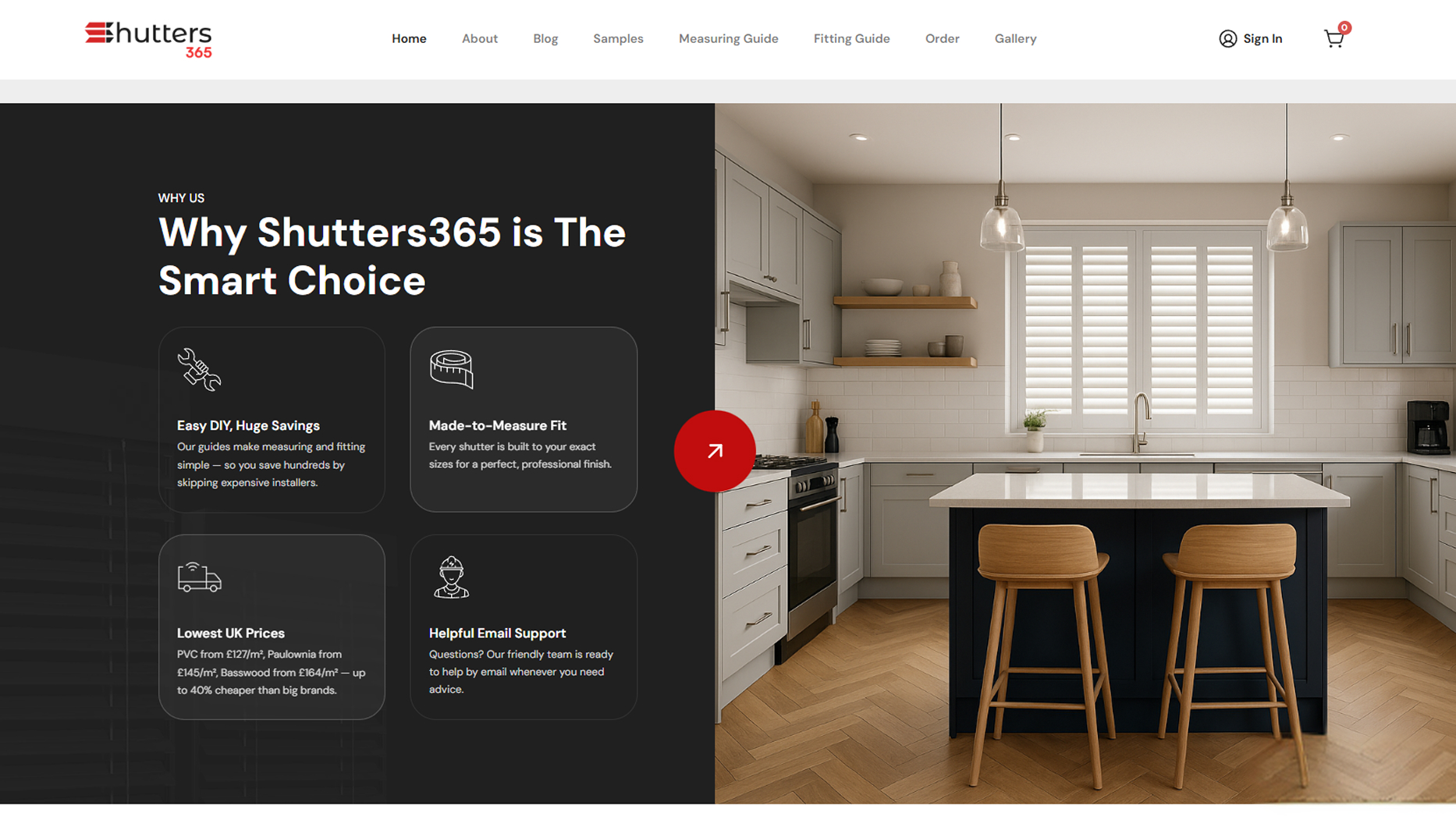

Screens From the Live Build
Surfaces We Designed & Engineered Into Production
Selected moments from the shipped Shutters365 platform—where product configuration, dynamic pricing, checkout, and DIY support content come together in a single WooCommerce journey.
Core Features & Functional Capabilities
Built For End-to-End DIY Commerce
- Custom Shutter Configuration System: A step-based configurator built as a custom WooCommerce plugin. This enables the structured selection of dimensions, materials, panel layouts, and finishes with rule-based validation of valid combinations and dependency constraints.
- Conditional Pricing Engine: Event-driven pricing logic integrated with WooCommerce cart calculation hooks, applying rule-based adjustments based on dimensions, materials, and configuration parameters.
- Payment Processing Integration: Integrated Stripe via WooCommerce Stripe Gateway, enabling secure payments, transaction handling, and webhook-based order status. It ensures synchronization within the WooCommerce order lifecycle.
- Order Fulfillment and Delivery Handling: Order processing is managed through WooCommerce data structures. This enables structured tracking across production, shipment, and delivery stages via order status transitions.
- DIY Support and Instructional Content: Structured WordPress-based documentation system providing installation guides, measurement instructions, and contextual support content embedded within the user journey.
- Customer Feedback and Support Handling: Customer reviews and support requests are captured through WooCommerce and structured forms, enabling traceable feedback linked to completed order records.
Technologies and Tech Stack We Used
WordPress & WooCommerce Extended With Custom Configurator Logic
WordPress
CMS foundation for product content, DIY guides, and storefront pages.
WooCommerce
Cart, checkout, orders, and plugin integration for bespoke shutter sales.
PHP
WordPress/WooCommerce plugin development, server-side validation, and pricing logic.
Stripe
Secure payments via WooCommerce Stripe Gateway with webhook order sync.
HTML5 · CSS3 · JavaScript
Configurator UI, progressive steps, and responsive storefront experience.
AJAX
Real-time pricing updates and asynchronous cart interactions.
Yoast SEO
On-page optimization for crawlable product and content surfaces.
Caching & Optimization Utilities
Controlled recalculations, caching layers, and session isolation for scale.
JSON · sessionStorage
Configuration serialization and client-side state persistence across navigation.
Testing & Quality Assurance
Validated For Configuration, Pricing & Checkout
- Functional testing of configuration flow, cart, and checkout.
- Rule validation testing for conditional logic and field dependencies.
- Pricing consistency testing across multiple configuration scenarios.
- Edge case testing for invalid dimensions and conflicting inputs.
- Session state testing for input persistence and recovery.
- End-to-end and payment testing for order processing accuracy.
Our Approach & Development Timeline
Agile Delivery Across 3 Months
Execution followed an agile delivery model with parallel, sprint-based development across frontend, backend, and integration modules. To ensure clarity, timelines represent concurrent work streams rather than dependencies.
Requirements Gathering & Flow Mapping
Configurator journeys, inputs, and WooCommerce integration scope.
Data Modeling & Configuration Logic Design
Rule structures, dependencies, and pricing parameters.
Subscription Engine & Core Business Rules
Server-side rules, validation, and cart calculation foundations.
Frontend, E-commerce & Payment Gateway
Parallel configurator UI, WooCommerce wiring, and Stripe integration.
Order Processing & System Synchronization
Structured order capture, status flows, and third-party alignment.
QA, Performance Optimization & Deployment
End-to-end validation, tuning, and production release.
Measurable Outcomes
Faster Configuration With Reliable Order Data
Digisoft Solution delivered a configurator-driven e-commerce system that standardizes product configuration, pricing, and order processing within a validation-driven flow. The platform replaces manual steps with a unified digital process, ensuring end-to-end data integrity from selection to fulfillment.
Pricing standardised via the WooCommerce server-side cart engine
Reduction in configuration workload within 60 days post-launch (client ops data)
Configuration time vs ~10–12 minute baseline (session analytics)
UX score from 45-day post-purchase customer survey
Configurator-driven WooCommerce checkout (transaction logs)
Drop in backend order correction logs after rule-based validation
Shutters365 can now manage custom-sized products by tightly coupling configuration logic with order execution. This helps establish a scalable foundation with reliable performance across the transaction lifecycle.
